    Two Nozzles 200L Fully Auotmatic Drum Filling Machine

    Ask Lasest Price
    Brand Name : DAESUM
    Model Number : GZ200-2DS
    Certification : ISO 9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3 sets per quarter
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

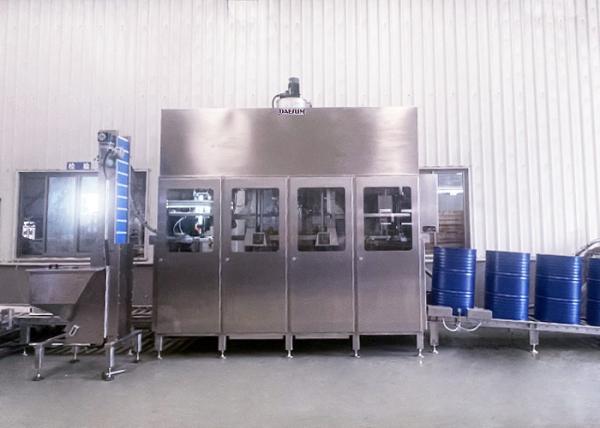

    Two Nozzles 200L Fully Auotmatic Drum Filling Machine

    Two-Nozzles 200L Fully Auotmatic Drum Filling Machine


    Introduction


    GZ200-D automatic series can accomplish the process of manual loading of drums, automatic infeeding the empty drums, automatic loosening the caps, automatic weighing filling with two filling stations, automatic capping, automatic outfeeding the heavy drums.

    The D series adopts a combination of electromechanical and visual alignment technology. When the empty drums loads to the cap loosening station, the fiiling line will automatically turn the drum to the required position and complete the loosening process. When the heavy drum arrives at the capping station, the syetem will use vision correction technology to automatically outfeed the drum after capping process.

    The D series has a high degree of automation, and usually requires functions such as automatic cap management, capping, labeling, palletizing, wrapping, etc., so it always requires a large area for long infeeding and outfeeding roller conveyors. And the filling line are always have an optional explosion-proof motor, exhaust air extraction equipment, or peripheral equipment such as capping machine, inkjet printer, labeling machine, palletizer, wrapping machine, etc.


    Equipment Features

    • High degree of automation, high productivity
    • Diversified functions to meet various needs
    • Safety and environmental protection
    • High output, single station output up to 35-40 drums per hour,max output up to 80 drums per hour
    • Suitable for high annual turnover, toxic and harmful, volatile, flammable and explosive chemical products

    Main ParametersMaterial Properties
    TYPEGZ200-2D 2NOZZLESFlammable and ExplosiveSUITABLE
    Container50L-220LToxic and HarmfulSUITABLE
    Container MaterialPlastic/Metal DrumHigh viscositySUITABLE
    Suitable for Variety of Drum TypesYesStrong CorrosiveSUITABLE
    Filling Speed80 Drums/HourVolatileSUITABLE
    Numbers of Filling Station1Easy to SolidifySUITABLE
    Max Weighing Capacity300kg
    Filling Index value100gPeripheral Equipment
    Filling Accuracy±0.1-0.2%FSDriven ConveyorYES(Optional)
    Operating Temperature-10℃-+40℃Drum Storage WarehouseNO (Optional)
    Power380VCoordinate PalletizierYES(Optional)
    GAS Source0.35~0.6MPaAutomatic Pallet WarehouseYES(Optional)
    LabellerNO (Optional)
    Degree of AutomationWrapping MachineNO (Optional)
    Auto Drum InfeedingYES
    Auto Bunghole PositioningYES
    Auto Cap LooseningYES
    Auto Quantitative FillingYES
    Auto Cap FeedingYES
    Auto CappingYES
    Auto Capping InspectionYES
    Auto Heavy Drum OutfeedingYES
    Auto LabellingNO(Optional)
    Auto PalletizingYES

    FAQ


    1. who are we?
    We are based in Shanghai, China, start from 2001,sell to Eastern Asia(30.00%),Mid East(20.00%),

    Southeast Asia(20.00%),Africa(15.00%),South America(5.00%),North America(5.00%),Eastern Europe(3.00%),

    Oceania(2.00%). There are total about 51-100 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Special product filling machine,Dosing and mixing plant,Packaging machine,Palletizer,Gravimetric filling machine

    4. why should you buy from us not from other suppliers?
    Strong ability to dealing with high temperature, high viscosity, high inflammability and strong toxicity products. Very detailed and appropriate customized solutions for your specific needs. Time-endurable quality and user-friendly operation.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF;
    Accepted Payment Currency:USD,EUR;
    Accepted Payment Type: T/T,L/C,D/P D/A;
    Language Spoken:English,Chinese
